Description

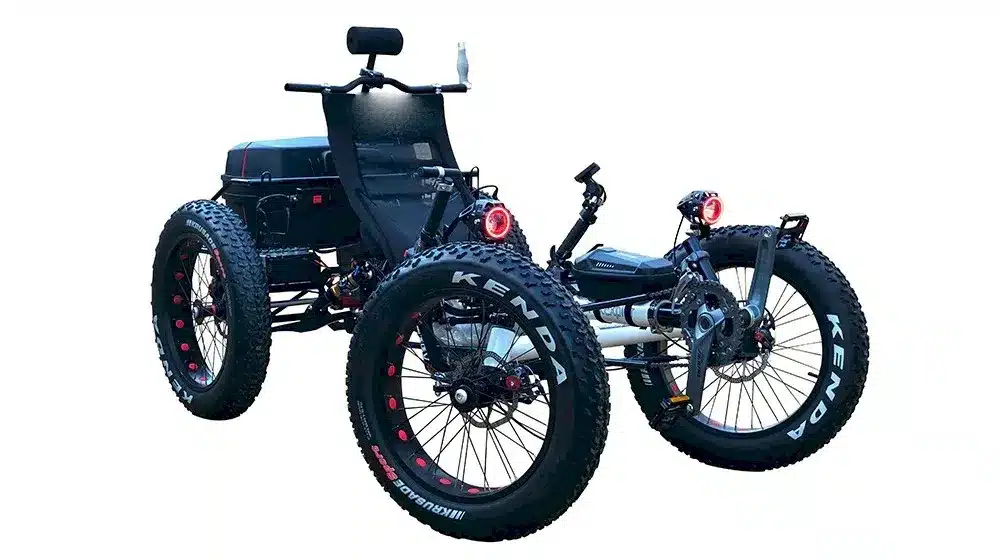

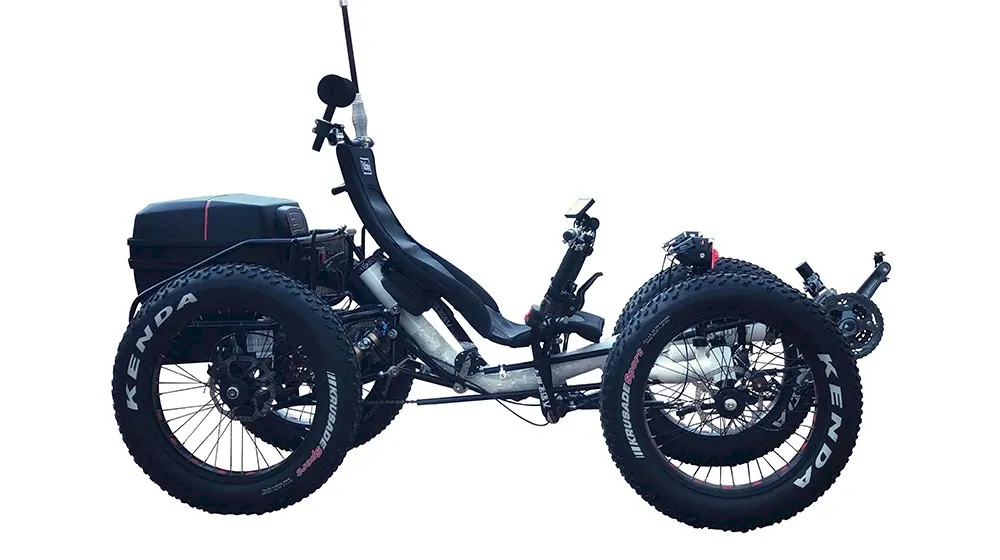

Electric Fat Tire Recumbent Quad

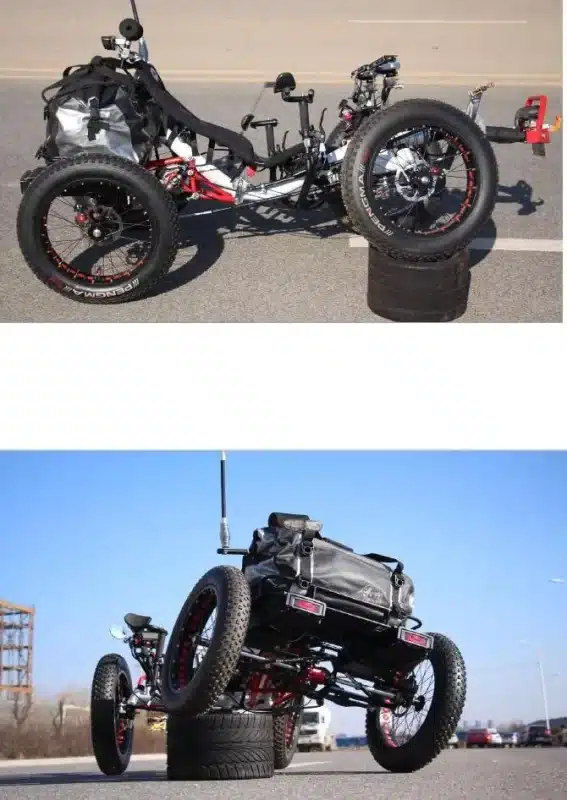

This Quad is built primarily to be easy to ride for some people who want more stability when off-roading. It offers a better view, good ground clearance, and additional cargo capacity, which makes it the perfect utility vehicle for adventure off-road, more extreme sport. Four fat tires offer the quad with excellent stability. Two rear powertrains give the quad ability to handle most of the terrains while off-roading. It is a grand touring vehicle with extra cargo capacity and remarkable ground clearance. All Terrain with high mobility: snow, sand, mountain, river, climbing stairs.
Superior transmission system
The two-stage transmission system minimizes the component size and provides efficient working. Meanwhile, it reduces the tension to maximize chain life.
A regular wheelset and fat wheelset can be converted based on this bike. (Comes with the fat tires)
Measurements of the Electric Fat Tire Recumbent Quad
Overall width: 90 cm/ 35.43 in
Overall height: 95 cm/ 37.4 inOverall length: 180-200 cm/ 70.87-78.74 inTrack width: 85 cm/33.46 inWheelbase: 110 cm/ 43.31 inGround clearance: 26 cm/ 10.24 inBottom seat height: 40 cm/ 15.75 inSeat width: 37 cm/ 14.57 inSeat depth: 25 cm/ 9.84 inSeat angle: 40°Turning circle: 4.0 m/ 157.48 inWheel size: 20 inMax. load: 150 kg/ 330.69 lbRider height: 165 – 200 cm/ 5’4” – 6’56”
Components
Frame: Aluminum 6061 T6Seat: Ergo-fiberglass seatTires: Kenda 20×4.0″Front brakes: Avid BB7 mountain mechanical disc brakeRear brakes: Avid BB7 mountain mechanical disc brakeBrake levers: Avid FR-5Shifter: Shimano Alivio SL-M4000 3×9-speedFront derailleur: Shimano Sora FD-3503-BRear derailleur: Shimano Alivio SL-M4000 3×9-speedCrankset: 42TCassette: Shimano CS-HG400-9 9-speed 11-32TChain: Shimano CN-HG73 9-speedSuspension: DNM AOY-36RC Air ShockMotor: 48v 500w mid-motorBattery: 48v 20Ah lithium batteryDisplay: LCD
Wide range Shimano 3×9 gearsThe wide range of gears is available suitable for touring and for off-road riding. The electric version F420E is with Shimano 9 gear

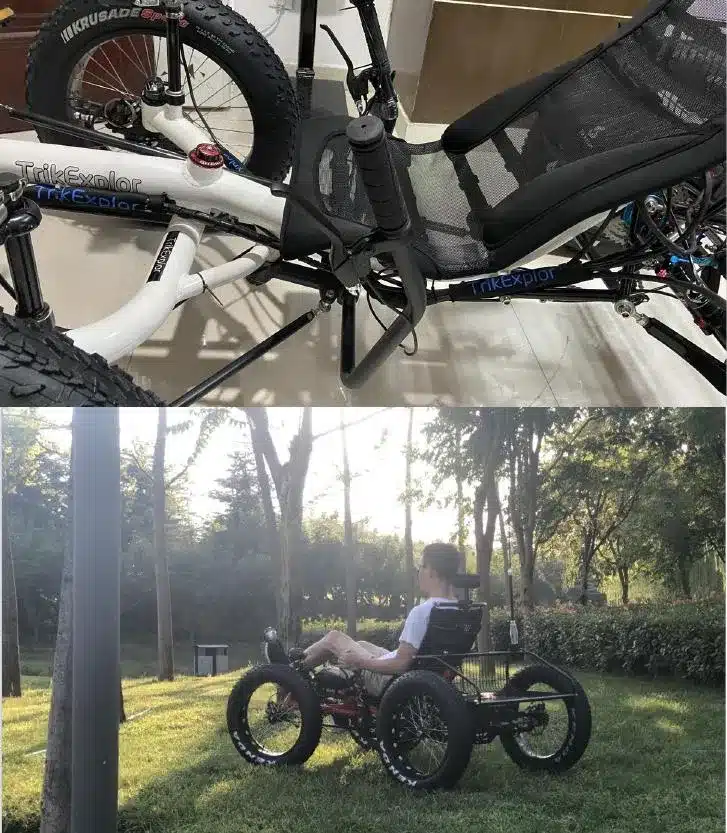

Under seat steeringA one-piece handlebar provides stability and nimble handling. The indirect steering system dissipates vibrations and shock before they reach your hands to give a comfortable and safe feel, even at high speed.

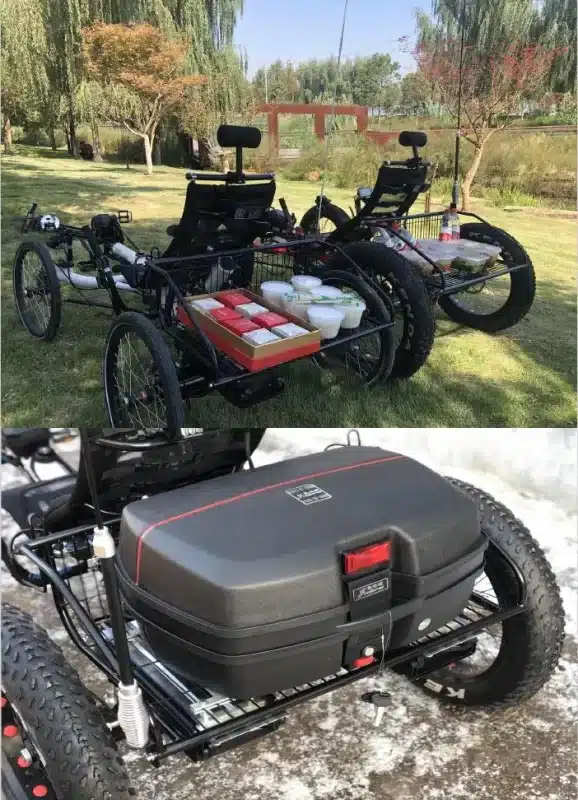

Super large rear rackThe open designed steel rear rack gives an ideal storage solution for large and heavy loads.

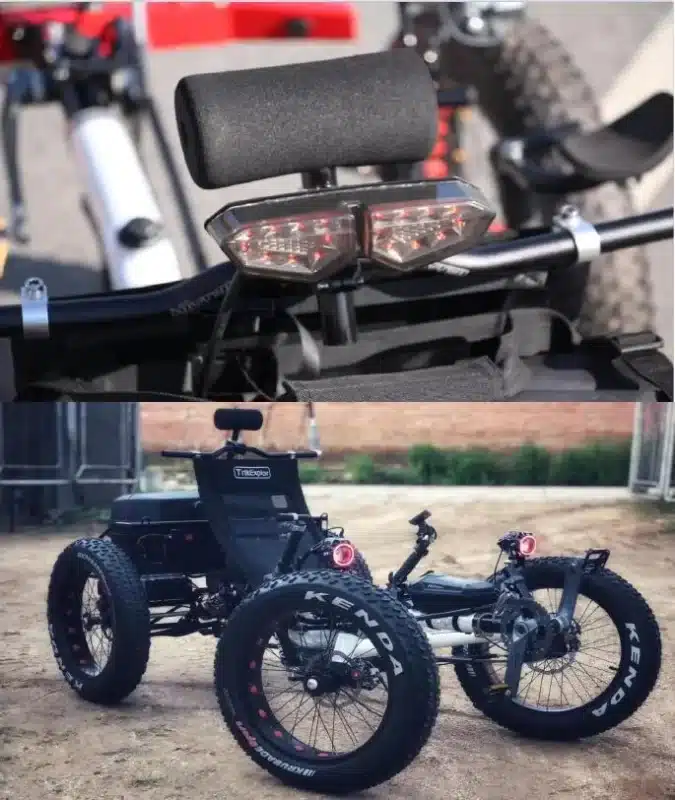

Intelligent Shift sensor for the Electric Fat Tire Recumbent QuadThe shift sensor momentarily cuts motor power when changing gears. It allows smooth shifting and provides longer lifetime to whole shifting system Lighting package (Optional)We offer a complete lighting system, including headlight, rear light with brake light, turn indicator with clicking sound. You can easily set their marks in the traffic. It makes you ride safer.
Electric Fat Tire Recumbent Quad
Medium seat height
The medium seat height helps you get on and off the trike easily and provides a clear view of traffic.

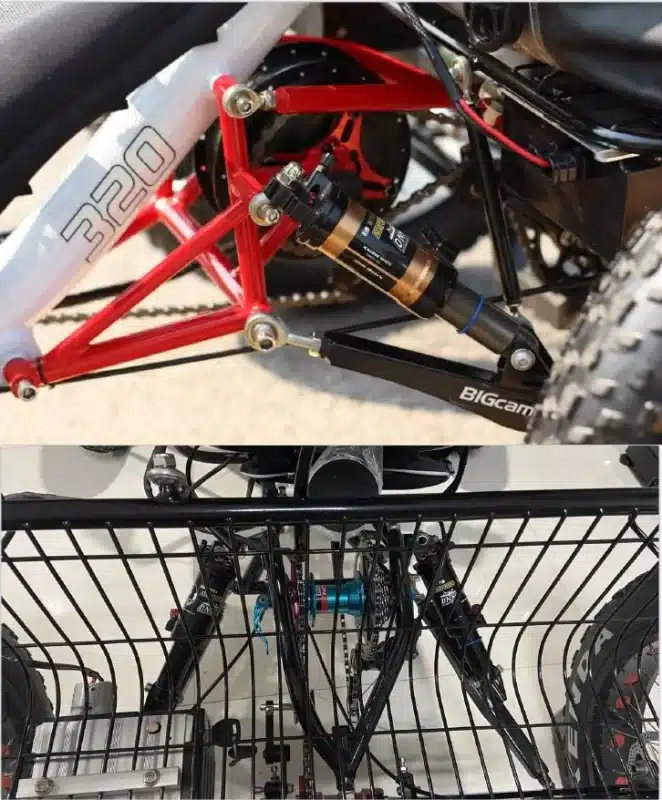

Rear two air suspensions can be optimized by simply adjusting, which delivers a comfortable and controlled ride.
The power diver is designed to drive a pair of wheels while allowing them to rotate at different speeds when turning a corner. What’s more, the divider can ensure one wheel to keep turning when slip occurs on the other wheel. Large rear rack
The open designed stainless steel rear rack gives an ideal storage solution for large and heavy loads.

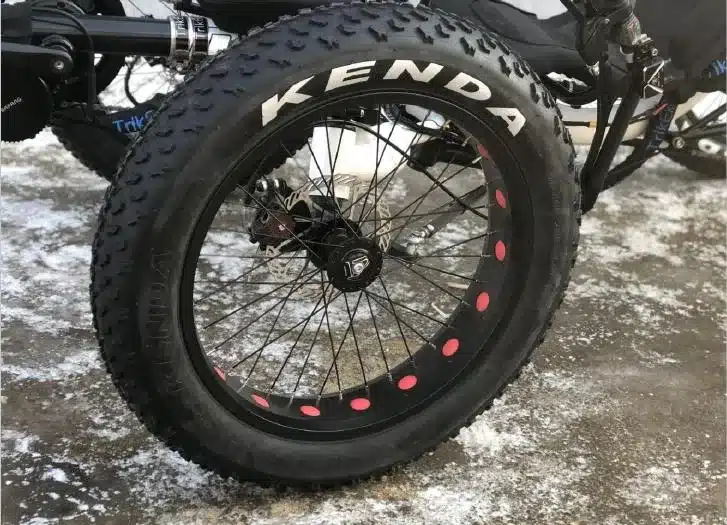

FeaturesFour 20×4.0” fat tiresLarge volume, low pressure tires give excellent float and traction over soft ground and bumpy trails. Reliable Avid BB7 mountain mechanical disc brakes on four wheelsTwo front brakes bring you powerful stopping power and two rear brakes offer parking function. The BB7 mechanical brake is easy to use, adjust and maintain, and an assuring choice when wet.

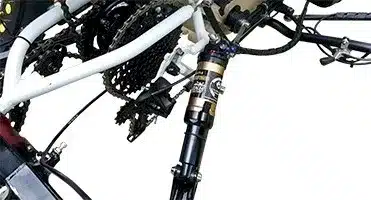

Adjustable air suspensionTwo rear air suspensions can be optimized by simply adjusting, which delivers ultimate stability and predictable handing. Thus, you can enjoy complete comfort on rough trails.

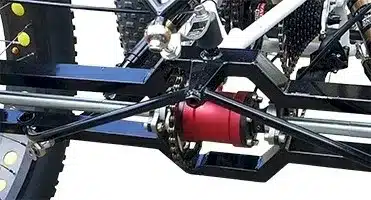

Superior transmission system of the Electric Fat Tire Recumbent QuadThe two-stage transmission system minimizes the component size and provides efficient working.Meanwhile, it reduces the tension to maximize chain life. Unique design DifferentialWe design and custom the differential with one way bearing inside, the differential divides the power to two rear wheels to provide more tractions so the quad can get out of a tricky situation. It ensures the wheels to always keep forward even if slip occurs, which is the biggest difference with the normal differential, meanwhile it can drive a pair of wheels while allowing them to rotate at different speeds when turning a corner
Electric Fat Tire Recumbent Quad

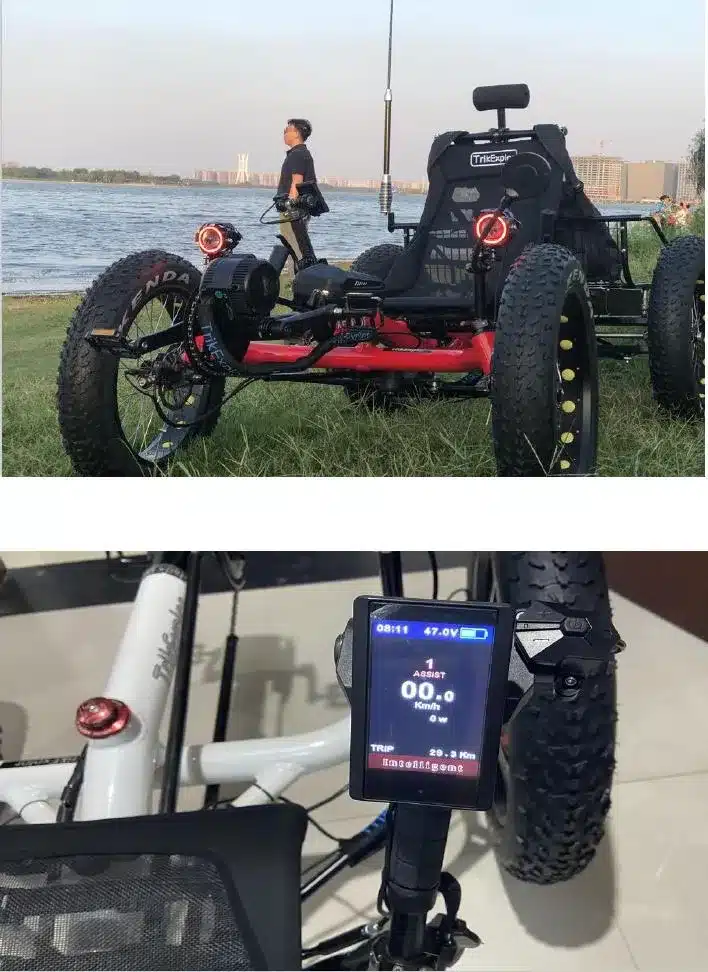

High torque Bafang electric motorBafang 48v 500w mid-drive motor provides 100 N.m high torque. It offers optional pedal assist levels:3-level, 5-level and 9-level. Smart and Luxury LCD panelThe LCD panel is color, large, glare-free, waterproof and with USB port. It has a clear and intuitive interface, loaded with functionality and can also works excellently even in direct sunlight and raining day.
